Introduction: The Strategic Value of Printing Techniques
As a Chinese manufacturer with 15+ years of experience in custom water bottles, Yeway deeply understands that the choice of bottle surface treatment directly impacts consumer perception of product value and brand quality. Printing techniques are the visual language through which a brand communicates with users. After handling 327 international brand customization projects, we confirm: **An excellent printing solution can increase brand recall by 30%**. When a consumer’s fingertips touch the texture of the bottle, the sensory experience created by the printing process is silently building brand recognition.

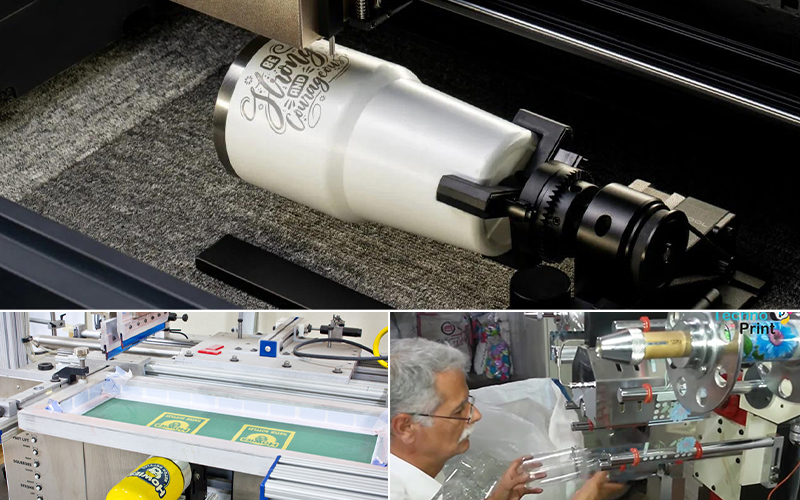

Screen Printing, Heat Transfer and Laser Engraving Techniques
Core Technology Analysis of Printing Techniques

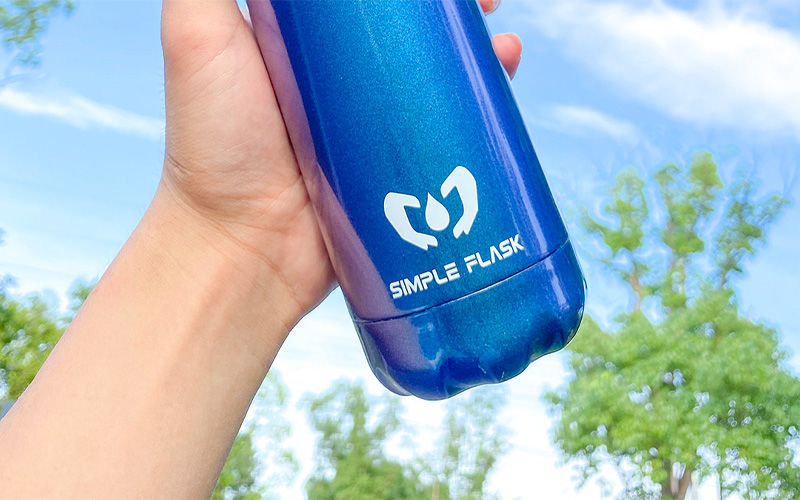

Screen Printing: The Precision Color Sculptor
Screen printing is like precise color sculpture, pressing ink accurately onto the bottle body through a 150-300 mesh screen. This technique shows remarkable results when customizing corporate team bottles——For a tech summit, we produced 5000 sets of bottles using four-color registration printing technology to perfectly reproduce complex corporate emblems, with 0.1mm registration accuracy ensuring crisp and sharp details.
Screen Printing Process
The core advantage of screen printing lies in **creating a three-dimensional texture**. When using foaming ink, the pattern's raised height can reach 0.3mm. The tactile feedback when fingertips glide over the logo forms a unique brand memory point. More notably is its exceptional opacity, allowing bright colors to appear even on dark bottles, an advantage difficult for other processes to match.

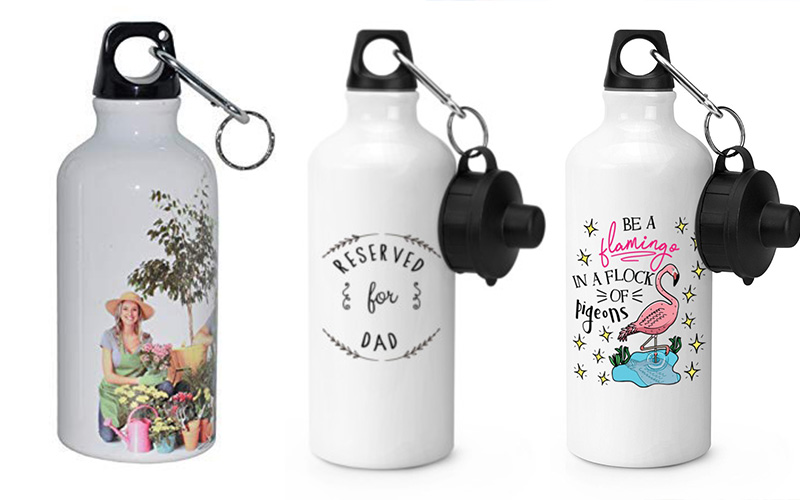

Heat Transfer Technology: The Master of Full-Color Canvases
When an international beverage brand needed to recreate a tropical rainforest scene on water bottles, heat transfer technology demonstrated its irreplaceable value. By digitally printing a 200dpi high-definition image onto special film, then applying pressure at 200°C to permanently fuse the pattern with the bottle body, even leaf veins were clearly distinguishable.
Heat Transfer Process
The breakthrough of this process is its **color expressiveness**, supporting the reproduction of 95% of spot colors from the Pantone library, with gradient transitions as natural as photographs. After 500 laboratory wash tests, pattern wear was less than 3%. This durability makes it the first choice for sports bottles. The latest water-based ink technology further reduces VOC emissions by 90%, elevating its environmental index to the forefront of the industry.

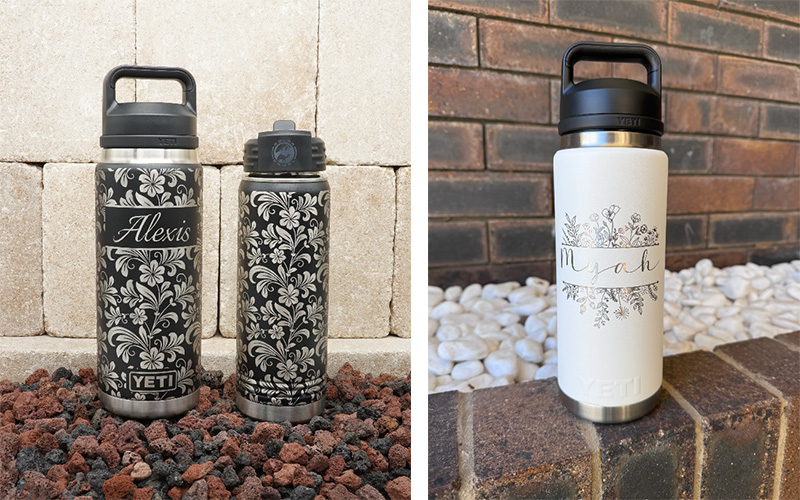

Laser Engraving: The Art of Eternal Imprint
In the field of high-end gift customization, laser engraving is redefining quality standards. For an employee commemorative bottle made for a luxury watch brand, we used 0.05mm precision fiber laser to engrave employee numbers and start dates onto the base of a 316 stainless steel bottle. Microscopic precision patterns create a unique visual rhythm under light refraction.
Laser Engraving Process
The ultimate value of laser engraving lies in its **permanence**. By precisely controlling laser energy (20-100W), it forms oxidized layer engravings 0.2-0.8mm deep on the metal surface, achieving a truly never-fading brand imprint. The entire process uses zero ink and produces zero wastewater, achieving LEED environmental certification and perfectly aligning with sustainable development principles.
Industry Application Scenario Analysis
Corporate Brand Value Enhancement Case
A multinational tech company's anniversary bottle used laser engraving to etch employees' handwritten signatures onto the bottle base. This **emotional design** resulted in a 98% employee retention rate, far exceeding the industry average of 65% for regular gifts. The key success factor was transforming corporate humanistic care into a tangible memory carrier.

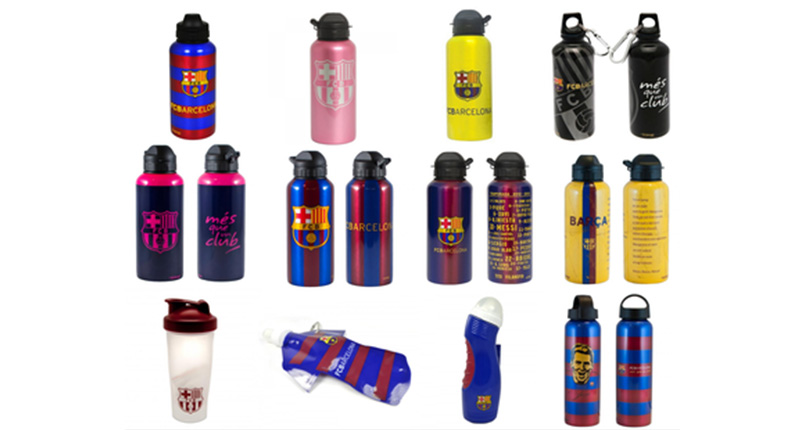

Sports Event Solutions
A World Cup custom water bottle project faced stringent challenges: printing high-definition team emblems on curved bottle surfaces while enduring outdoor sun exposure and frequent washing. Double-layer heat transfer technology was adopted, with UV absorbers added to the outer protective film. Testing showed no significant fading after 200 days under intense sunlight, perfectly meeting event requirements.
Professional Recommendations for Process Selection
Based on fifteen years of customer service experience, we have distilled the golden rules for decision-making:
**Prioritize Brand Positioning**: Premium brands should opt for the eternal texture of laser engraving.
**Determine by Design Complexity**: Panoramic patterns necessitate heat transfer technology.
**Consider Usage Scenarios**: Focus on the abrasion resistance of heat transfer for sports settings.
**Balance Budget and Effectiveness**: Promotional gifts can utilize cost-effective screen printing.
True wisdom in process selection lies in understanding that each technique is not merely a decorative method, but an extension of brand strategy
------ Director Chen, Asia-Pacific Brand Consultant
Which printing technique interests you most? Feel free to share your customization needs or questions, our technicians will provide professional solutions! Transform your creativity into tangible brand stories. From vibrant full-color graphics to minimalist monochrome designs or intricate patterns, our advanced printing technologies deliver your vision with precision-crafted clarity and industrial-grade durability
